Hanna Instruments HI-98193 Professional Waterproof Dissolved Oxygen and BOD Meter

Code: PHM0358 D2-102

The HI-98193 portable dissolved oxygen meter has extended ranges of up to 50ppm and 600% saturation. When measuring dissolved oxygen, compensations for salinity, temperature and pressure are essent...


read more

Your Price
$1,139.99 EACH

2 Year Warranty
Service Centre
Calibration Service

The HI-98193 portable dissolved oxygen meter has extended ranges of up to 50ppm and 600% saturation. When measuring dissolved oxygen, compensations for salinity, temperature and pressure are essential to improve the accuracy and precision of readings. Salinity compensation allows for direct determination of dissolved oxygen in saline waters. Temperature compensation is automatic with the probes built-in sensor, which features a one or two-point calibration. Pressure compensation with the meter's built-in barometer can be validated against a reference barometer, and if needed, can be recalibrated in user-selectable units (mmHg, inHg, atm, psi, kPa, mbar). With the internal barometer, the HI-98193 is able to compensate for changes in barometric pressure so there is no need for charts, altitude information or external barometric pressure information. Other features include measurement, methods and calculations for BOD, OUR and SOUR.

  • HI-764073 polarographic dissolved oxygen probe features a quick connect DIN connector to make attaching and removing the probe simple and easy
  • Log-on demand features allows users to store up to 400 samples that can be later transferred to a PC with the HI-920015 USB cable and HI-92000 software
  • Comprehensive GL data is directly accessible by pressing the GLP key; the contextual help menu can be accessed to obtain on-screen information and assistance at the touch of a button
  • IP67 rated waterproof, rugged enclosure
  • Salinity compensation - users can set the salinity value
  • Automatic pressure compensation - built-in barometer with user-selectable units (mmHg, inHg, atm, psi, kPa, mbar)
  • Built-in calculations - determination of Biochemical Oxygen Demand (BOD), Oxygen Uptake Rate (OUR) and Specific Oxygen Uptake Rate (SOUR)
  • Automatic polarisation of probe at startup
  • Ready to use PTFE preformed membrane caps
  • Approximately 200 hours of continuous use
  • On-screen Features
  • BOD is calculated in mg per litre from the difference between the initial and final dissolved oxygen concentration readings
  • All necessary parameters for BOD testing can be set and displayed at once
  • A list of all saved BOD data can be easily retrieved and shown on the LCD display
  • OUR results measured in mg of oxygen consumed per L per hour
  • SOUR results measured in mg of oxygen consumed per g of volatile suspended solids per hour

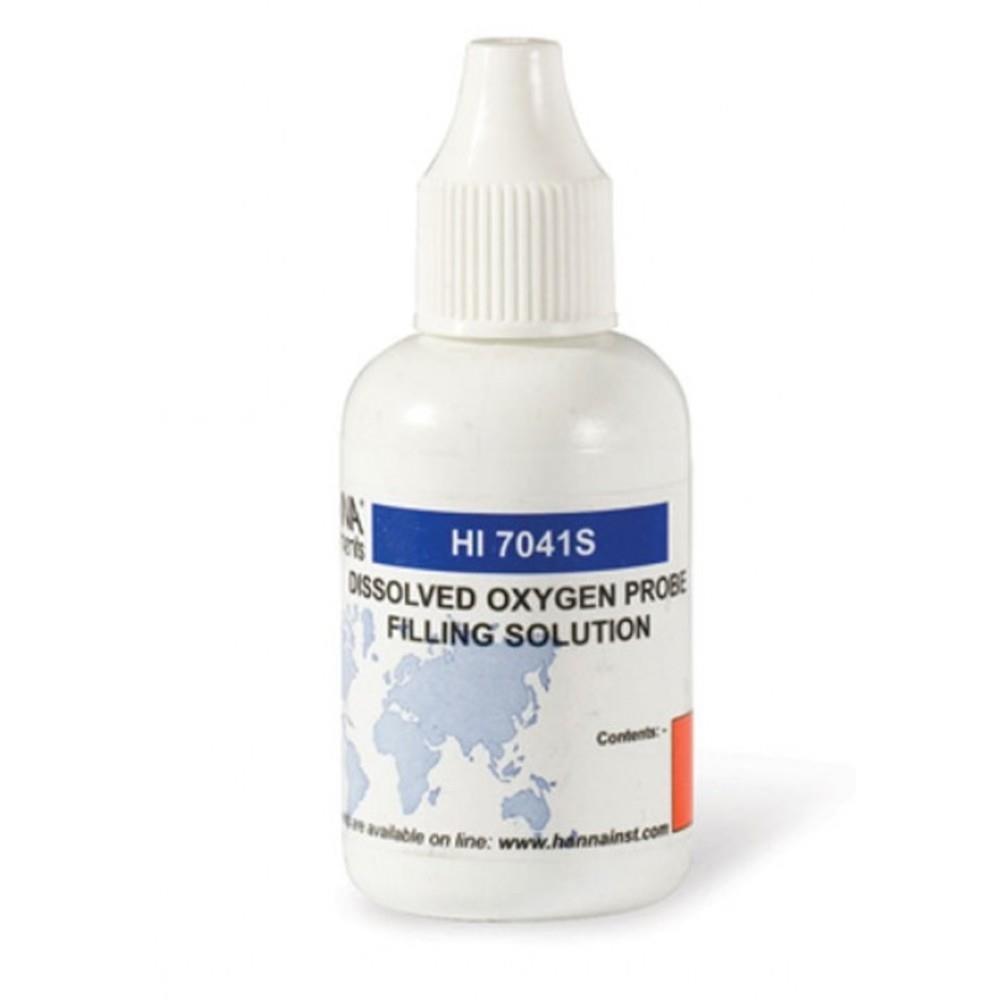

  • Supplied with HI-764073 polarographic DO probe, 30mL HI-7041S electrolyte solution for polarographic sensors, HI-7040 bicomponent zero oxygen solution, 2 x preformed PTFE membrane caps, DO protective cap, 2 x O-rings, rugged carrying case, 2 x 100mL plastic beaker, HI-92000 PC software, HI-920015 micro USB cable, batteries, instruction manual, quality certificate, 4m cable

DO Range0.00 to 50.00mg/L (ppm); 0.0 to 600.0% saturation
DO Resolution0.01mg/L (ppm); 0.1% saturation
DO Accuracy @25°C±1.5% of reading ±1 digit
DO CalibrationAutomatic one or two point at 100% (8.26mg/L) and 0% (0mg/L); manual one point using a value entered by the user in % saturation or mg/L
Atmospheric Pressure Range450 to 850mmHg
Atmospheric Pressure Resolution1mmHg
Atmospheric Pressure Accuracy @ 25°C±3mmHg within ±15% from the calibration point
Atmospheric Pressure Calibrationone point at any in range pressure value
Temperature Range-20.0 to 120.0°C
Temperature Resolution0.1°C
Temperature Accuracy @25°C±0.2°C (excluding probe error)
Temperature CalibrationOne or two point at any in range temperature value
Measurement ModesDO; BOD; OUR; SOUR
Barometric CompensationAutomatic from 450 to 850mmHg
Salinity CompensationAutomatic from 0 to 70g/L
Temperature CompensationAutomatic from 0.0 to 50.0°C
ProbeHI-764073 polarographic DO probe with protective sleeve, internal temperature sensor, DIN connector and 4m cable (included)
LoggingLog-on demand up to 400 samples
PC ConnectivityOpto-isolated USB (with HI-92000 software)
Battery Type4 x 1.5V AA batteries
Battery LifeApproximately 200 hours of continuous use without backlight (50 hours with backlight)
Auto-offUser-selectable: 5, 10, 30, 60 min or can be displayed
Environment0 to 50°C; RH 100% IP67
Dimensions185 x 93 x 35.2mm
Weight400g
